빈 스코프는 빈이 존재할 수 있는 범위를 뜻한다. 스프링은 다음과 같은 다양한 스코프를 지원한다.
- 싱글톤: 기본 스코프, 스프링 컨테이너의 시작과 종료까지 유지되는 가장 넓은 범위의 스코프
- 프로토타입: 스프링 컨테이너는 프로토타입 빈의 생성과 의존관계 주입까지만 관여하고 더는 관리하지 않는 매우 짧은 범위의 스코프이다.
- 웹 관련 스코프
- request: 웹 요청이 들어오고 나갈때 까지 유지되는 스코프
- session: 웹 세션이 생성되고 종료될 때 까지 유지되는 스코프
- application: 웹의 서블릿 컨텍스와 같은 범위로 유지되는 스코프
빈 스코프는 다음과 같이 지정할 수 있다.
// 컴포넌트 스캔 자동 등록
@Scope("prototype")
@Component
public class HelloBean { }
// 수동 등록
@Scope("prototype")
@Bean
PrototypeBean HelloBean() {
return new HelloBean();
}
프로토타입 스코프
싱글톤 스코프의 빈을 조회하면 스프링 컨테이너는 항상 같은 인스턴스의 스프링 빈을 반환한다. 반면에 프로토타입 스코프를 스프링 컨테이너에 조회하면 스프링 컨테이너는 항상 새로운 인스턴스를 생성해서 반환한다.
스프링 컨테이너는 프로토타입 빈을 생성하고, 의존관계 주입, 초기화까지만 처리한다. 클라이언트에 빈을 반환하고, 이후 스프링 컨테이너는 생성된 프로토타입 빈을 관리하지 않는다. 프로토타입 빈을 관리할 책임은 프로토타입 빈을 받는 클라이언트에 있다. 그래서 @PreDestroy 같은 종료 메서드가 호출되지 않는다.
다음은 싱글톤 스코프 빈 테스트이다.
package hello.core.scope;
import jakarta.annotation.PostConstruct;
import jakarta.annotation.PreDestroy;
import org.assertj.core.api.Assertions;
import org.junit.jupiter.api.Test;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;
import org.springframework.context.annotation.Scope;
public class SingletonTest {
@Test
public void singletonBeanFind() {
AnnotationConfigApplicationContext ac = new AnnotationConfigApplicationContext(SingletonBean.class);
SingletonBean singletonBean1 = ac.getBean(SingletonBean.class);
SingletonBean singletonBean2 = ac.getBean(SingletonBean.class);
System.out.println("singletonBean1 = " + singletonBean1);
System.out.println("singletonBean2 = " + singletonBean2);
Assertions.assertThat(singletonBean1).isSameAs(singletonBean2);
ac.close();
}
@Scope("singleton")
static class SingletonBean {
@PostConstruct
public void inti() {
System.out.println("SingletonBean.inti");
}
@PreDestroy
public void destroy() {
System.out.println("SingletonBean.destroy");
}
}
}
SingletonBean.inti
singletonBean1 = hello.core.scope.SingletonTest$SingletonBean@4f2613d1
singletonBean2 = hello.core.scope.SingletonTest$SingletonBean@4f2613d1
SingletonBean.destroy
- 빈 초기화 메서드를 실행
- 같은 인스턴스의 빈을 조회
- 종료 메서드까지 정상 호출
다음은 프로토타입 스코프 빈 테스트이다.
package hello.core.scope;
import jakarta.annotation.PostConstruct;
import jakarta.annotation.PreDestroy;
import org.assertj.core.api.Assertions;
import org.junit.jupiter.api.Test;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;
import org.springframework.context.annotation.Scope;
public class PrototypeTest {
@Test
void prototypeBeanFind() {
AnnotationConfigApplicationContext ac = new AnnotationConfigApplicationContext(PrototypeBean.class);
System.out.println("find prototypeBean1");
PrototypeBean prototypeBean1 = ac.getBean(PrototypeBean.class);
System.out.println("find prototypeBean2");
PrototypeBean prototypeBean2 = ac.getBean(PrototypeBean.class);
System.out.println("prototypeBean1 = " + prototypeBean1);
System.out.println("prototypeBean2 = " + prototypeBean2);
Assertions.assertThat(prototypeBean1).isNotSameAs(prototypeBean2);
ac.close();
}
@Scope("prototype")
static class PrototypeBean {
@PostConstruct
public void inti() {
System.out.println("PrototypeBean.inti");
}
@PreDestroy
public void destroy() {
System.out.println("PrototypeBean.destroy");
}
}
}
find prototypeBean1
PrototypeBean.inti
find prototypeBean2
PrototypeBean.inti
prototypeBean1 = hello.core.scope.PrototypeTest$PrototypeBean@55e8ec2f
prototypeBean2 = hello.core.scope.PrototypeTest$PrototypeBean@4f2613d1
- 싱글톤 빈은 스프링 컨테이너 생성 시점에 초기화 메서드가 실행 되지만, 프로토타입 스코프의 빈은 스프링 컨테이너에서 빈을 조회할 때 생성되고, 초기화 메서드도 실행
- 프로토타입 빈을 2번 조회했으므로 완전히 다른 스프링 빈이 생성되고, 초기화도 2번 실행
- 싱글톤 빈은 스프링 컨테이너가 관리하기 때문에 스프링 컨테이너가 종료될 때 빈의 종료 메서드가 실행
- 프로토타입 빈은 스프링 컨테이너가 생성과 의존관계 주입 그리고 초기화 까지만 관여하고, 더는 관리하지 않으므로 프로토타입 빈은 스프링 컨테이너가 종료될 때 @PreDestroy 같은 종료 메서드가 전혀 실행되지 않음
프로토타입 빈의 특징을 정리하면 다음과 같다.
- 스프링 컨테이너에 요청할 때 마다 새로 생성
- 스프링 컨테이너는 프로토타입 빈의 생성과 의존관계 주입 그리고 초기화까지만 관여
- 종료 메서드가 호출되지 않음
- 프로토타입 빈은 프로토타입 빈을 조회한 클라이언트가 관리해야 함
- 종료 메서드에 대한 호출도 클라이언트가 직접 해야함
싱글톤 빈과 함께 사용시 문제점
스프링 컨테이너에 프로토타입 스코프의 빈을 요청하면 항상 새로운 객체 인스턴스를 생성해서 반환하지만 싱글톤 빈과 함께 사용할 때는 의도한 대로 잘 동작하지 않으므로 주의해야 한다.
2명의 클라이언트가 프로토타입 빈을 직접 요청한 뒤, addCount()를 호출한 프로토타입을 확인하면 다음과 같다.
package hello.core.scope;
import jakarta.annotation.PostConstruct;
import jakarta.annotation.PreDestroy;
import org.assertj.core.api.Assertions;
import org.junit.jupiter.api.Test;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;
import org.springframework.context.annotation.Scope;
public class SingletonWithPrototypeTest1 {
@Test
void prototypeFind() {
AnnotationConfigApplicationContext ac = new AnnotationConfigApplicationContext(PrototypeBean.class);
PrototypeBean prototypeBean1 = ac.getBean(PrototypeBean.class);
prototypeBean1.addCount();
Assertions.assertThat(prototypeBean1.getCount()).isEqualTo(1);
PrototypeBean prototypeBean2 = ac.getBean(PrototypeBean.class);
prototypeBean2.addCount();
Assertions.assertThat(prototypeBean2.getCount()).isEqualTo(1);
}
@Scope("prototype")
static class PrototypeBean {
private int count = 0;
public void addCount() {
count++;
}
public int getCount() {
return count;
}
@PostConstruct
public void init() {
System.out.println("PrototypeBean.init" + this);
}
@PreDestroy
public void destroy() {
System.out.println("PrototypeBean.destroy");
}
}
}
다음은 clientBean이라는 싱글톤 빈이 의존관계 주입을 통해서 프로토타입 빈을 주입받아서 사용하는 예이다.
package hello.core.scope;
import jakarta.annotation.PostConstruct;
import jakarta.annotation.PreDestroy;
import lombok.RequiredArgsConstructor;
import org.assertj.core.api.Assertions;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;
import org.springframework.context.annotation.Scope;
public class SingletonWithPrototypeTest1 {
@Test
void prototypeFind() {
AnnotationConfigApplicationContext ac = new AnnotationConfigApplicationContext(PrototypeBean.class);
PrototypeBean prototypeBean1 = ac.getBean(PrototypeBean.class);
prototypeBean1.addCount();
Assertions.assertThat(prototypeBean1.getCount()).isEqualTo(1);
PrototypeBean prototypeBean2 = ac.getBean(PrototypeBean.class);
prototypeBean2.addCount();
Assertions.assertThat(prototypeBean2.getCount()).isEqualTo(1);
}
@Test
void singletonClientUsePrototype() {
AnnotationConfigApplicationContext ac = new AnnotationConfigApplicationContext(ClientBean.class, PrototypeBean.class);
ClientBean clientBean1 = ac.getBean(ClientBean.class);
int count1 = clientBean1.logic();
Assertions.assertThat(count1).isEqualTo(1);
ClientBean clientBean2 = ac.getBean(ClientBean.class);
int count2 = clientBean2.logic();
Assertions.assertThat(count2).isEqualTo(2);
}
// @Scope("singleton")
// @RequiredArgsConstructor
// static class ClientBean {
// private final PrototypeBean prototypeBean;
// }
@Scope("singleton")
static class ClientBean {
private final PrototypeBean prototypeBean;
@Autowired
public ClientBean(PrototypeBean prototypeBean) {
this.prototypeBean = prototypeBean;
}
public int logic() {
prototypeBean.addCount();
int count = prototypeBean.getCount();
return count;
}
}
@Scope("prototype")
static class PrototypeBean {
private int count = 0;
public void addCount() {
count++;
}
public int getCount() {
return count;
}
@PostConstruct
public void init() {
System.out.println("PrototypeBean.init" + this);
}
@PreDestroy
public void destroy() {
System.out.println("PrototypeBean.destroy");
}
}
}
스프링은 일반적으로 싱글톤 빈을 사용하므로, 싱글톤 빈이 프로토타입 빈을 사용하게 된다. 그런데 싱글톤 빈은 생성 시점에서만 의존관계 주입을 받기 때문에, 프로토타입 빈이 새로 생성되기는 하지만, 싱글톤 빈과 함께 유지되는 것이 문제다.
싱글톤 빈과 함께 사용시 Provider로 문제 해결
싱글톤 빈과 프로토타입 빈을 함께 사용할 때, 항상 새로운 프로토타입 빈을 생성할 수 있는지 알아본다.
가장 간단한 방법은 싱글톤 빈이 프로토타입을 사용할 때 마다 스프링 컨테이너에 새로 요청하는 것이다.
package hello.core.scope;
import jakarta.annotation.PostConstruct;
import jakarta.annotation.PreDestroy;
import org.assertj.core.api.Assertions;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;
import org.springframework.context.annotation.Scope;
public class PrototypeProviderTest {
@Test
void providerTest() {
AnnotationConfigApplicationContext ac = new AnnotationConfigApplicationContext(ClientBean.class, PrototypeBean.class);
ClientBean clientBean1 = ac.getBean(ClientBean.class);
int count1 = clientBean1.logic();
Assertions.assertThat(count1).isEqualTo(1);
ClientBean clientBean2 = ac.getBean(ClientBean.class);
int count2 = clientBean2.logic();
Assertions.assertThat(count2).isEqualTo(1);
}
@Scope("singleton")
static class ClientBean {
@Autowired
private ApplicationContext ac;
public int logic() {
PrototypeBean prototypeBean = ac.getBean(PrototypeBean.class);
prototypeBean.addCount();
int count = prototypeBean.getCount();
return count;
}
}
@Scope("prototype")
static class PrototypeBean {
private int count = 0;
public void addCount() {
count++;
}
public int getCount() {
return count;
}
@PostConstruct
public void init() {
System.out.println("PrototypeBean.init" + this);
}
@PreDestroy
public void destroy() {
System.out.println("PrototypeBean.destroy");
}
}
}
- 실행해보면 ac.getBean()을 통해서 항상 새로운 프로토타입 빈이 생성되는 것을 확인할 수 있음
- 의존관계를 외부에서 주입(DI) 받는게 아니라 이렇게 직접 필요한 의존관계를 찾는 것을 Dependency Lookup(DL) 의존관계 조회(탐색) 이라한다.
- 이렇게 스프링의 애플리케이션 컨텍스트 전체를 주입받게 되면, 스프링 컨테이너에 종속적인 코드가 되고, 단위 테스트로 어려워짐
지정한 빈을 컨테이너에서 대신 찾아주는 DL 서비스를 제공하는 것이 바로 ObjectProvider이다.
@Scope("singleton")
static class ClientBean {
@Autowired
private ObjectProvider<PrototypeBean> prototypeBeansProvider;
public int logic() {
PrototypeBean prototypeBean = prototypeBeansProvider.getObject();
prototypeBean.addCount();
int count = prototypeBean.getCount();
return count;
}
}
- 실행해보면 prototypeBeanProvider.getObject()를 통해서 항상 새로운 프로토타입 빈이 생성되는 것을 확인할 수 있음
- 스프링이 제공하는 기능을 사용하지만, 기능이 단순하므로 단위테스트를 만들거나 mock 코드를 만들기는 훨씬 쉬워짐
- ObjectProvider는 지금 딱 필요한 DL 정도의 기능만 제공
- ObjectFactory: 기능이 단순, 별도의 라이브러리 필요 없음, 스프링에 의존
- ObectProvider: ObjectFactory 상속, 옵션, 스트림 처리등 편의 기능이 많고, 별도의 라이브러리가 필요 없음, 스프링에 의존
마지막 방법은 javax.inject.Provider라는 JSR-330 자바 표준을 사용하는 방법이다. 이 방법을 사용하려면 ‘jakarta.inject:jakarta.inject-api:2.0.1’라이브러리를 gradle에 추가해야 한다.
@Scope("singleton")
static class ClientBean {
@Autowired
private Provider<PrototypeBean> provider;
public int logic() {
PrototypeBean prototypeBean = provider.get();
prototypeBean.addCount();
int count = prototypeBean.getCount();
return count;
}
}
- provider.get()을 통해서 항상 새로운 프로토타입 빈이 생성되는 것을 확인할 수 있음
- provider의 get()을 호출하면 내부에서는 스프링 컨테이너를 통해 해당 빈을 찾아서 반환(DL)
- 자바 표준이고, 기능이 단순하므로 단위테스트를 만들거나 mock 코드를 만들기는 훨씬 쉬워짐
- Provider는 지금 딱 필요한 DL 정도의 기능만 제공
- get() 메서도 하나로 기능이 매우 단순
- 자바 표준이므로 스프링이 아닌 다른 컨테이너에서도 사용 가능
웹 스코프
웹 스코프는 웹 환경에서만 동작하고 프로토타입과 다르게 스프링이 해당 스코프의 종료 시점까지 관리한다. 따라서 종료 메서드가 호출된다.
- request: HTTP 요청 하나가 들어오고 나갈 때 까지 유지되는 스코프, 각각의 HTTP 요청마다 별도의 빈 인스턴스가 생성되고, 관리됨
- session: HTTP Session과 동일한 생명주기를 가지는 스코프
- application: 서블릿 컨텍스트(ServletContext)와 동일한 생명주기를 가지는 스코프
- websocket: 웹 소켓과 동일한 생명주기를 가지는 스코프
request 스코프 예제 만들기
웹 스코프는 웹 환경에서만 동작하므로 web 환경이 동작하도록 ‘org.springframework.boot:spring-boot-starter-web’라이브러리를 추가한다. 이제 main 메서드를 실행하면 웹 애플리케이션이 실행된다. 이때, 기본 포트인 8080 포트를 다른곳에서 사용중이어서 오류가 발생하면 포트를 변경해야 한다. 이를 하기 위해 application.properties에 다음 설정을 추가한다.
server.prot=9090

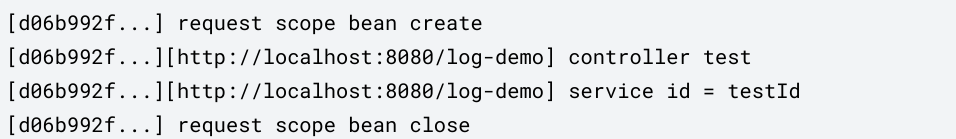

동시에 여러 HTTP 요청이 오면 정확히 어떤 요청이 남긴 로그인지 구분하기 어렵기 때문에 request 스코프를 사용한다.
- 기대하는 공통 포멧: UUID {message}
- UUID(Unique ID)를 사용해서 HTTP 요청을 구분
- requestURL 정보도 추가로 넣어서 어떤 URL을 요청해서 남은 로그인지 확인
package hello.core.common;
import jakarta.annotation.PostConstruct;
import jakarta.annotation.PreDestroy;
import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;
import java.util.UUID;
@Component
@Scope(value = "request")
public class MyLogger {
private String uuid;
private String requestURL;
public void setRequestURL(String requestURL) {
this.requestURL = requestURL;
}
public void log(String message) {
System.out.println("[" + uuid + "]" + "[" + requestURL + "]" + message);
}
@PostConstruct
public void init() {
uuid = UUID.randomUUID().toString(); // 유니크한 아이디를 만드는 자바 기능
System.out.println("[" + uuid + "] request scope bean create;" + this);
}
@PreDestroy
public void close() {
System.out.println("[" + uuid + "] request scope bean close;" + this); }
}
- 로그를 출력하기 위한 클래스
- @Scope(value = “request”)를 사용해서 request 스코프로 지정. 이제 이 빈은 HTTP 요청 당 하나씩 생성되고, HTTP 요청이 끝나는 시점에 소멸
- 이 빈이 생성되는 시점에 자동으로 @PreConstruct 초기화 메서드를 사용해서 uuid를 생성해서 저장
- 이 빈은 HTTP 요청당 하나씩 생성되므로, uuid를 저장해두면 다른 HTTP 요청과 구분 가능
- 이 빈이 소멸되는 시점에 @PreDestroy를 사용래서 종료 메시지를 남김
- requestURL은 이 빈이 생성되는 시점에는 알 수 없으므로, 외부에서 setter로 입력 받음
package hello.core.web;
import hello.core.common.MyLogger;
import jakarta.servlet.http.HttpServletRequest;
import lombok.RequiredArgsConstructor;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
@Controller
@RequiredArgsConstructor
public class LogDemoController {
private final LogDemoService logDemoService;
private final MyLogger myLogger;
@RequestMapping("log-demo")
@ResponseBody
public String logDemo(HttpServletRequest request) {
String requestURL = request.getRequestURL().toString();
myLogger.setRequestURL(requestURL);
myLogger.log("controller test");
logDemoService.logic("testId");
return "OK";
}
}
- HttpServletRequest를 통해서 요청 URL을 받았다
- requestURL 값: http://localhost:8080/log-demo
- 이렇게 받은 requestURL 값을 myLogger에 저장해둔다.
- myLogger는 HTTP 요청 당 각각 구분되므로 다른 HTTP 요청 때문에 값이 섞이는 걱정은 하지 않아도 됨
- 컨트롤러에서 controller test라는 로그를 남김
package hello.core.web;
import hello.core.common.MyLogger;
import lombok.RequiredArgsConstructor;
import org.springframework.stereotype.Service;
@Service
@RequiredArgsConstructor
public class LogDemoService {
private final MyLogger myLogger;
public void logic(String id) {
myLogger.log("sercice id = " + id);
}
}
- 비즈니스 로직이 있는 서비스 계층에서도 로그를 출력
- 서비스 계층은 웹 기술에 종속되지 않고, 가급적 순수하게 유지하는 것이 유지보수 관점에서 좋음
다음과 같은 오류가 발생한다
Error creating bean with name 'myLogger': Scope 'request' is not active for the current thread; consider defining a scoped proxy for this bean if you intend to refer to it from a singleton
이는 스프링 애플리케이션을 실행하는 시점에 싱글톤 빈을 생성해서 주입이 가능하지만, request 스코프 빈은 아직 생성되지 않는다. 즉, 요청이 와야지 생성할 수 있다.
스코프와 Provider
첫번째 해결방안은 Provider를 사용하는 것이다.
package hello.core.web;
import hello.core.common.MyLogger;
import jakarta.servlet.http.HttpServletRequest;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.ObjectProvider;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
@Controller
@RequiredArgsConstructor
public class LogDemoController {
private final LogDemoService logDemoService;
private final ObjectProvider<MyLogger> myLoggerProvider;
@RequestMapping("log-demo")
@ResponseBody
public String logDemo(HttpServletRequest request) {
String requestURL = request.getRequestURL().toString();
MyLogger myLogger = myLoggerProvider.getObject();
myLogger.setRequestURL(requestURL);
myLogger.log("controller test");
logDemoService.logic("testId");
return "OK";
}
}
package hello.core.web;
import hello.core.common.MyLogger;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.ObjectProvider;
import org.springframework.stereotype.Service;
@Service
@RequiredArgsConstructor
public class LogDemoService {
private final ObjectProvider<MyLogger> myLoggerProvider;
public void logic(String id) {
MyLogger myLogger = myLoggerProvider.getObject();
myLogger.log("sercice id = " + id);
}
}
이제 http://localhost:8080/log-demo에 접속해 본다.
[c0c5baa3-dacd-4bdf-a295-0ebbe9805e9e] request scope bean create;hello.core.common.MyLogger@48a1d56e
[c0c5baa3-dacd-4bdf-a295-0ebbe9805e9e][http://localhost:8080/log-demo]controller test
[c0c5baa3-dacd-4bdf-a295-0ebbe9805e9e][http://localhost:8080/log-demo]sercice id = testId
[c0c5baa3-dacd-4bdf-a295-0ebbe9805e9e] request scope bean close;hello.core.common.MyLogger@48a1d56e
스코프와 프록시
이번에는 프록시 방식을 사용한다. MyLogger에 다음과 같이 어노테이션을 수정하고, Provider를 사용하기 이전으로 나머지 코드들을 수정한다.
@Component
@Scope(value = "request", proxyMode = ScopedProxyMode.TARGET_CLASS)
public class MyLogger {}
- proxyMode = ScopedProxyMode.TARGET_CLASS 추가
- 적용 대상 인터페이스가 아닌 클래스면 TARGET_CLASS 선택
- 적용 대상이 인터페이스면 INTERFACES 선택
- 이렇게 하면 MyLogger의 가짜 프록시 클래스를 만들어두고 HTTP request와 상관 없이 가짜 프록시 클래스를 다른 빈에 미리 주입해 둘 수 있음
[4f1473be-6d58-4802-b05e-b7f1d2b64532] request scope bean create;hello.core.common.MyLogger@57d561a1
[4f1473be-6d58-4802-b05e-b7f1d2b64532][http://localhost:8080/log-demo]controller test
[4f1473be-6d58-4802-b05e-b7f1d2b64532][http://localhost:8080/log-demo]sercice id = testId
[4f1473be-6d58-4802-b05e-b7f1d2b64532] request scope bean close;hello.core.common.MyLogger@57d561a1
@Scope의 proxyMode = ScopedProxyMode.TARGET_CLASS를 설정하면 스프링 컨테이너는 CGLIB라는 바이트코드를 조작하는 라이브러리를 사용해서, MyLogger를 상속받은 가짜 프록시 객체를 생성한다. 그리고 스프링 컨테이너에 “myLogger”라는 이름으로 진짜 대신에 이 가짜 프록시 객체를 등록한다. 그래서 의존관계 주입도 이 가짜 프록시 객체가 주입된다
댓글남기기
